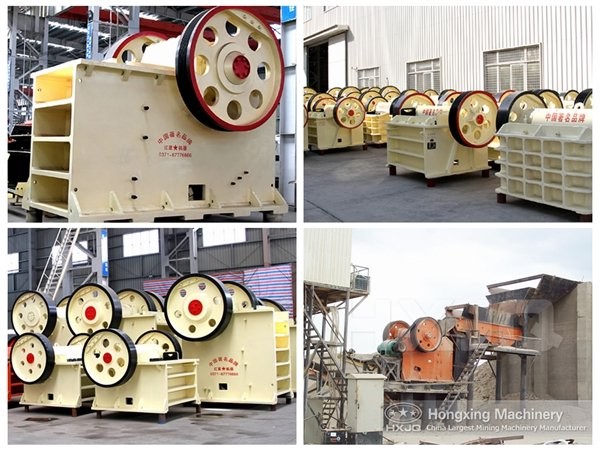

Jaw Crusher

Jaw Crusher

Jaw crusher is a kind of stone crusher which is used widely in many industrial departments including mining, smelt metal, building materials, public road, railway, water conservation, chemical industry and so on, and it is also called rock crusher.

Overview of Jaw Crusher

Jaw crusher is a kind of stone crusher which is used widely in many industrial departments including mining, smelt metal, building materials, public road, railway, water conservation, chemical industry and so on, and it is also called rock crusher.

Jaw Crushers

Characteristics of Jaw Crusher

1. High crushing ratio: Hongxing Machinery is able to produce more than ten models of jaw crushers which all have high crushing ratio.

2. Uniform crushed size or even final particles and simple structure.

3. Stable performance, reliable operation, easy maintenance and energy saving.

Major Types of Jaw Crusher

In the mining industry, jaw crusher is one of the most widely used rock crushers. According to the crushing stage of this crusher, it can be divided into primary jaw crusher and secondary jaw crusher; according to the number of the toggles, it can be divided into single toggle jaw crusher and multiple toggle jaw crusher. Since jaw crusher is mainly used for crushing stones and rock materials, it is also called stone jaw crusher.

Working Principle of Jaw Crusher

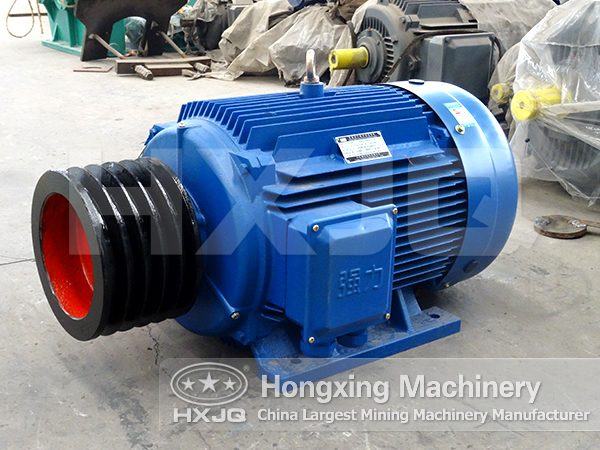

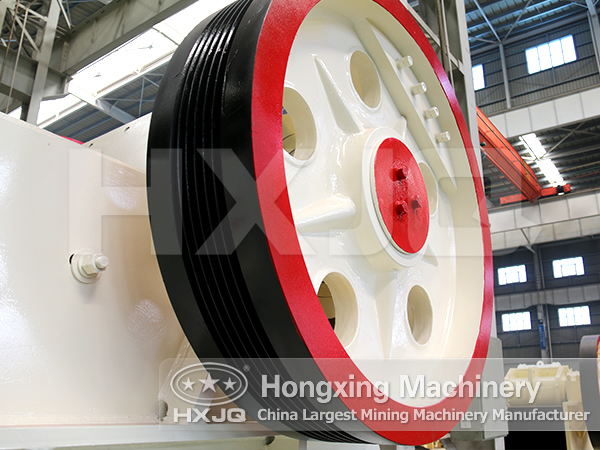

The crushing style of jaw crusher is the type of driving extrusion. The motor drives the belt and belt pulley to make the moveable jaw move through the eccentric shaft. When movable jaw is rising, the included angle between the wrist plate and movable jaw becomes bigger to drive the movable plate to be close to the movable plate. At the same time the material is squeezed and rubbed, rolled to achieve multiple crushing.

When movable jaw is descending, the included angle between the wrist plate and movable jaw becomes smaller. Now the crushed material is discharged from the crushing cavity, with the continuous rotation of the motor, the movable jaw crushing and discharging the material periodically to realize batch production.

A Professional Jaw Crusher Supplier-Hongxing Machinery

Henan Hongxing Mining Machinery Co., Ltd is a professional jaw crusher supplier in China and is the production and export base of jaw crusher china, and the China jaw crusher designed and manufactured by our company has the best quality and the most competitive price.

Technical parameters

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
