Sand Washer

Sand Washer

Sand washer which is also called sand washing equipment is a type of highly-efficient equipment used for washing and drying building materials coordinated with sand maker and is widely used in construction plant, gravel factory, hydropower station, concrete dam sites and other industries.

Brief Introduction to Sand Washer

Sand washer which is also called sand washing equipment is a type of highly-efficient equipment used for washing and drying building materials coordinated with sand maker and is widely used in construction plant, gravel factory, hydropower station, concrete dam sites and other industries. China sand washer enjoys high popularity in domestic and foreign mining market and Hongxing Machinery is the best and professional sand washer supplier in China.

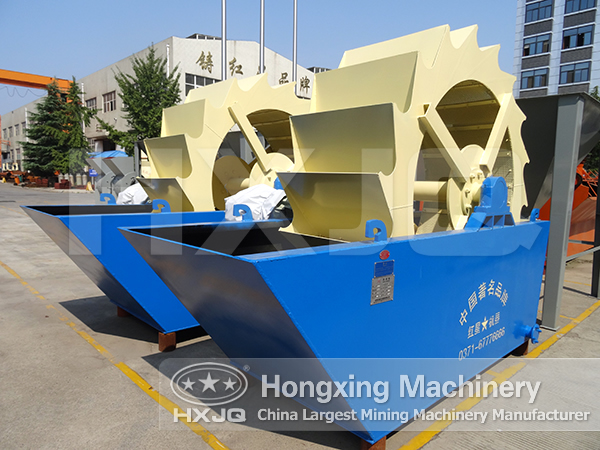

Sand Washer

Major Types and Application of China Sand Washers

The China sand washers have many types and each one has its unique application in mining. Artificial sand washer has the characteristics of high cleaning degree, reasonable structure, high output and lower power consumption. The transmission parts of sand washer are isolated from water and sand, which makes the fault rate much lower than that of the sand washer in common use. At present, bucket sand washer is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on. Mineral sand washer can be widely used in metallurgy, construction, and water and electricity industry.

Benefits and Features of Sand Washing Machine

1) Simple structure and reliable operation

2) Save water

3) Durable, no pollution

4) Long service life and little maintenance.

5) Adjustable overflow weir

Operating Principle of Sand Washing Machine

The sand washer is driven by motor and decelerated machine, and the impeller in the driving gullet revolves periodically, so that the sand, gravel and slag particles are mixed, overturned and washed in the gullet to remove surface impurities of gravel and damage the water vapor-coated layer of sand, facilitating dehydration. Meanwhile, strong water flow by adding water to clean small proportion impurities. Finally, the washed materials are dehydrated and discharged in the impeller.

Technical parameters

Specification
XS2200
XS2600
XS2900
XS3500
Wheel bucket diameter
(mm)
2200
2600
2900
3500
Rotation Speed
(r/min)
1-2
1-2
0.8-1.5
0.8-1.2
Processing capacity (t/h)
15-30
20-50
50-100
120-200
Motor power
(kw)
4
5.5
7.5
11
Total weight
(kg)
4300
5600
8100
9900
Dimensions (L×W×H)
(mm)
3150×1910×2280
3520×2390×2690
3820×2640×3200
4420×2930×3800
