Mobile Crushing Station

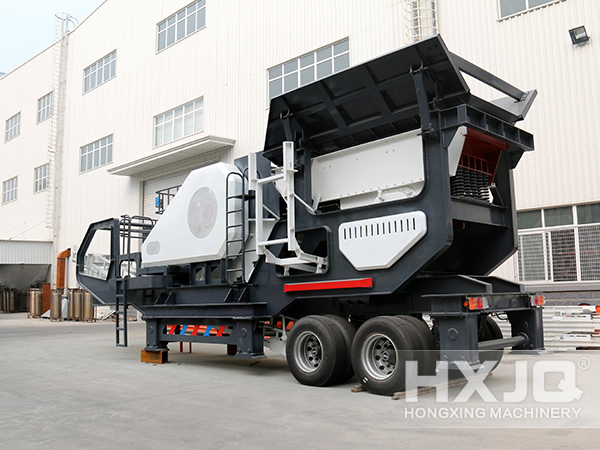

Mobile Crushing Station

Mobile crushing station is based on the clients’ requirements, which clears faults of the crushing place, surroundings and the complex basic configurations. This series mobile crushers really supply simpler, higher efficient lower cost machines for clients.

Mobile crushing station — excellent mobile crushing station

Mobile primary crushing station is developed according to novel series stone crushing equipment's design idea, which expands the concept field of coarse crushing and fine crushing. Its design idea is based on the clients' requirements, which clears faults of the crushing place, surroundings and the complex basic configurations. This series of mobile crushers is outstanding for higher efficiency and low cost.

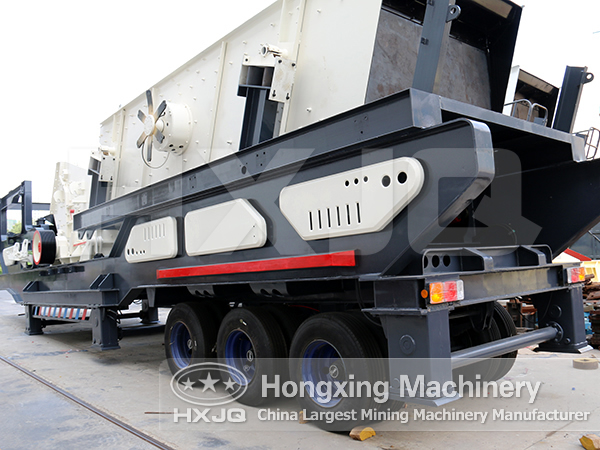

Mobile Crushing Station

Outstanding performance of mobile crushing station:

1. PE Series high-performance crusher

2. Feeder and vibrating screen are all in one.

3. Turn axle of traction is convenient for road transit and expanding the working place.

4. Belt conveyor under screen, vibrating screen, crusher installation of an integrated on-board

5. Vehicle installation supporting is easier for equipment to station in the working place.

6. Vehicle electric generating set, motors and control box are all included.

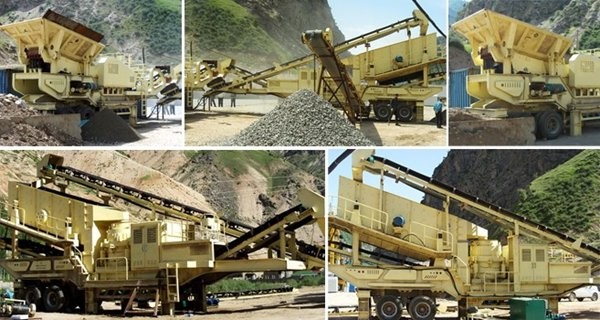

Applications of mobile crushing station Integrated set of the station

The form of integrative installment reduces the installation of the complex infrastructure and accessory equipment, and reduces the consumption of materials and man-hour. The spatial arrangement optimizes the operating spaces, saves the floor space and expands the flexibility of stationing.

This keeps the system fully mobile and rock solid under all conditions while Portable crusher excitement is significantly reduced, said Thomas Jabs, vice-president, TechCenters materials handling, Sandvik Mining and Construction. This not only keeps availability at a high level, but also improves the positioning of the machine.

Advantages of mobile crushing station:


2.Lower freight cost

3.Direct and efficient operation

4.Easy to adapt and flexible to collocate

5.Reliable performance and convenient maintenance

6.Hongxing Machinery is the best China mobile crushers supplier and we can provide the best services for you.


Technical parameters


Model HX938F1210 HX938FW1214 HX1149F1315 HX1349HD1110 HX1349HD1315
Transportation Length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size(mm) 350 350 500 400 700
Production Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) (kw) 320 320 400 320 440
Iron Separator (Optional)(kw) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12


Model HX938HD80 HX1149HD98 HX1349HD110 HX1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 14700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
