Cone Crusher

Cone Crusher

Cone Crusher materials by the working surface are between the movable cone and fixed cone. So it is more advanced and efficiency than Jaw Crusher. The movable cone is supported by spherical bearing and fixed on a hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing.

Brief Description of Cone Crushers

Cone Crusher uses the lubricant seal. The spring insurance system is the over-load protection device. The Cone Crusher is widely applied in cement plant, building, and metallurgy. It is suitable for crushing the iron ore, the non-ferrous metal ore, the granite, the limestone, the cobblestone and so on. The major types of Hongxing cone crushers include Rock cone crusher, Hydraulic cone crusher, Rock cone crusher and Secondary cone crusher. All of these have their own unique applied ranges.

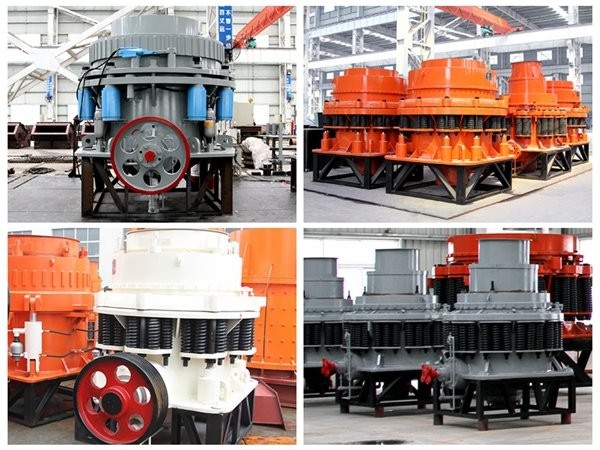

cone crushers

Special Features of Cone crusher

1. Low cost with easy maintenance;

2. Stable performance with high reduction ratio;

3. Unique crushing ability in primary, secondary and tertiary crushing;

4. Spring insurance system to reduce down time.

5. Flexible configuration and a more stable system.

6. Medium hard and hard rocks and ores crushing;

7. Flexible capacity;

8. Easy replacement of wearing parts and top continuous crushing performance;

9. High reliability and durability.

10. Safe environment working conditions.

Working Principle of Cone Crusher

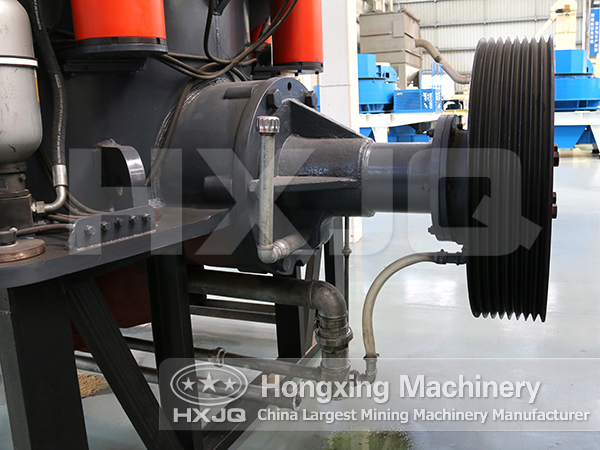

The crushing chamber of the China cone crusher is by the working surface are between the movable cone and fixed cone. So it is more advanced and efficient than Jaw Crusher. The movable cone is supported by spherical bearing and fixed on a hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are ground into pieces, and when the cone leaves, ground materials will be discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole; consequently the output size is determined.

For higher productivity, better reliability and flexibility, long service life, and better final product quality, the cone crusher is absolutely your best choice. Henan Hongxing Mining Machinery Co., Ltd is a professional cone crusher manufacturer in China, and the cone crusher manufactured by our company has many advantages over the same cone crushers manuafactured by other cone crusher suppliers.

Technical parameters

Specification Model Diameter
of large
end of
crushing
 cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
(t)
Dimensions
(L×W×H)
(mm)
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
