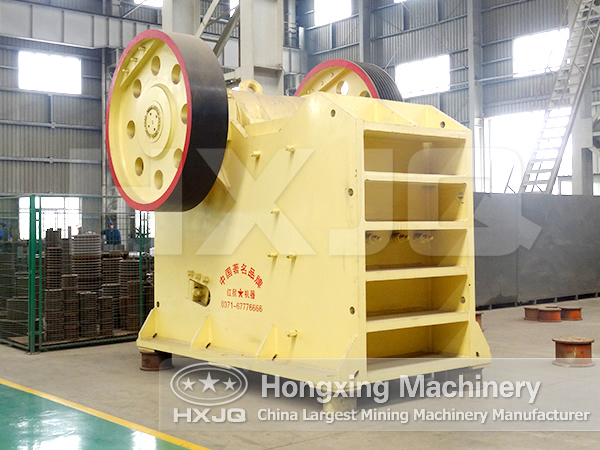

Stone Jaw Crusher

Stone Jaw Crusher

This mobile stone crusher plant uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track.

Overview of Stone Jaw Crusher

Stone jaw crusher is also called jaw breaker. It is usually applied for coarse, medium and fine crushing of various rocks, including limestone. Hongxing has endeavored to design and manufacture jaw crusher which is a type of highly-efficient and energy-saving crusher. The jaw crushers feature simple structure, excellent strength, reliable performance, easy overhaul and maintenance, and low production and construction cost. The jaw crushers include stone jaw crusher, mobile jaw crushers, rock crushers and aggregate jaw crusher.

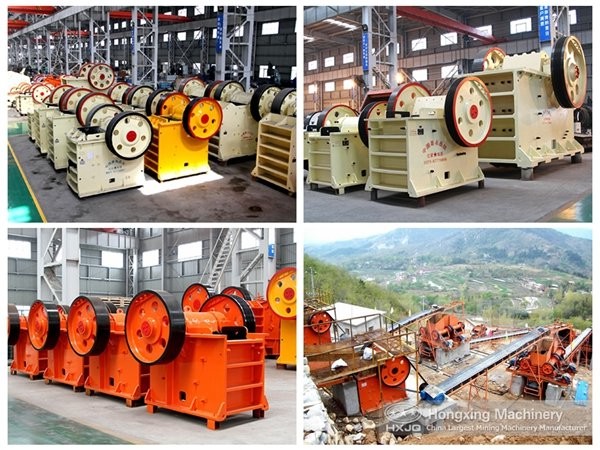

Jaw Crushers

Features of Jaw Crusher

1. Crushing cavity is deep without dead zone. It is easier to feed materials and yield higher output.

2. Jaw crusher is featured with high crushing ratio and sound deadening.

3. The gasket type adjusting device of the discharge gate is characterized by reliable performance, convenient use, large adjusting range, and improves the equipment flexibility.

4. The lubricating system is safe and reliable. It makes it easier to replace components and requires little maintenance.

5. Jaw crusher features simple structure, reliable performance and low operating cost.

6. It is highly energy saving. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.

7. To meet different client needs, the discharge gate is designed with a large adjusting range.

8. Jaw crusher causes low noise and creates little dust.

Working Principle of Jaw crusher

This mobile stone crusher plant uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.

The mobile jaw crusher which is also called mobile stone crusher plant has the same working principle with jaw crusher, but it can be moved conveniently and simply.

Wide Application of Jaw crusher

Mining industry: jaw crusher is usually used as primary crusher in ore mining industry or other mining process such as copper ore mining, limestone mine industry, coal mining, etc.

Smelting industry: jaw crusher is applied widely in metal smelting industries such as aluminum smelting industry, silver smelting industry, lead and zinc smelting industry, etc.

Building material and construction: jaw crushers are extensively applied in railway ballast crushing process, cornerstone crushing, concrete, limestone and basalt aggregate crushing.

Highway or railway: jaw crusher can be used as pebble crusher, aggregate crusher, sand making machines, etc.

Water conservancy and chemical industry: In dam construction, jaw crusher takes an important part in crushing process.

Technical parameters

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
