Sand Maker

Sand Maker

Major domestic and overseas VSI sand maker manufacturers for the products of performance, domestic machines and major foreign company product is the gap between the full range of, mainly displays in the fool Artificial sand maker customer service customer service, especially before the selection service.

Introduction

The sand maker is the ideal equipment for sand making and building stones reshaping. The high efficiency impact crusher can be used to manufacture ideal dinas and concrete aggregate. As for building stones reshaping, the high efficiency impact crusher ensures that clients get high quality crushed stone with good shape. The sand maker is manufactured with advanced world standard. It features high performance and low consumption. It is irreplaceable among all the fine crushing equipment.

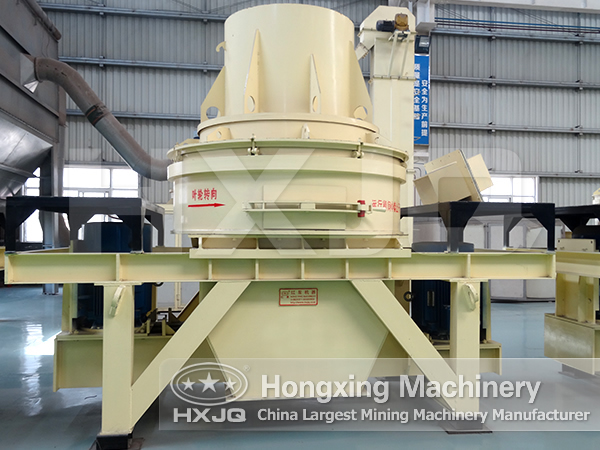

Sand Maker

Features

1. The VSI sand maker has high washing cleanliness and causes no pollution or little sand loss during the washing process.

2. Designed with rational structure, novel seal structure, totally enclosed oil bath type gearing and adjustable overflow weir plate.

3. Very little medium sand, fine sand and stone powder loss during the washing process. The grading and fineness modulus of Artificial sand maker are all up to industrial standard.

4. Handling capacity is great and power consumption is low.

5. The Artificial sand maker saves water resources and causes no pollution. It is quite durable.

6. Easy to maintain and convenient to operate.

Wider Application of Sand Production Line

This Production line is suitable for crushing granite, basalt, cobble, bauxite, cement clinker, quartz, silicon carbide, mine and iron ore, and it solves the problems of the traditional sand making equipment that only can crush the soft rock less than 150MPa.

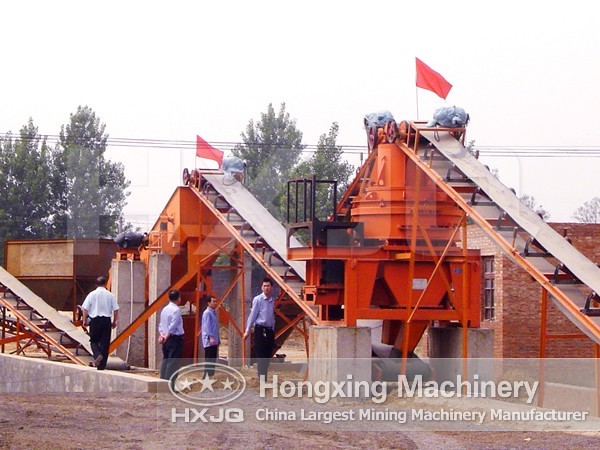

Sand Making plant

High-quality products

With cubic shape, low content of needle and slice particles and high anti-pressure, the final products are suitable for high-standard construction such as water conservancy, bridge, expressway and the high buildings.

There still exists a gap between the major domestic and overseas VSI sand maker manufacturers in product design and services.

Technical parameters of HX Series impact crusher

Technical parameters of HX Series impact crusher

Specification Max.feeding size
(mm)
Power
(kw)
Rotation speed of impeller
(r/min)
Capacity
(t/h)
Dimensions(L×W×H)
(mm)
Total weight
(kg)
HX06 35 37-55 2000-3000 12-30 2500×1620×2600 5600
HX07 45 55-75 1500-2500 25-55 2700×1760×2800 7600
HX09 50 110-150 1200-2000 55-100 3900×2000×3070 12600
HX10 60 150-180 1000-1700 100-160 4600×2350×3450 17300
HX12 60 264-320 850-1450 160-300 4500×2400×3700 22500
HX13 60 320-400 800-1193 200-360 5200×2700×3800 27600



Model HXVSI-7611 HXVSI-8518 HXVSI-9526 HXVSI-1140
Capacity
(t/h)
Feedboth at center and at sides 120-180 200-260 300-380 450-520
Feed at center 60-90 100-130 150-190 225-260
Max.Feeding size(mm) Sofe material 35 40 45 50
Hard material 30 35 40 45
Rotation speed
(r/min)
1700-1890 1520-1690 1362-1510 1180-1310
Doubole Motor power
(kw)
110 180 264 400
Overall dimension (L×W×H)
(mm)
3700×2150×2100 4140×2280×2425 4560×2447×2778

5000×2700×3300

Total weight (t) 11.8 14.5 17.8 25.6
Power supply 380V 50HZ
Vibrating sensor Detect range 0.1-20mm/s continous and adjustable
Lubrication and hydraulic station Double motor power 2×0.31kw
Safety assuance Double oil pumps assure enough oilsupply: automantic switch off with no oil stream or hydraulic temperature with cool water in summer with motorin winter.
Overall dimension (L×W×H)
(mm)
820×520×1270
Power of oil tank heeater 2KW
