Vibrating Feeder

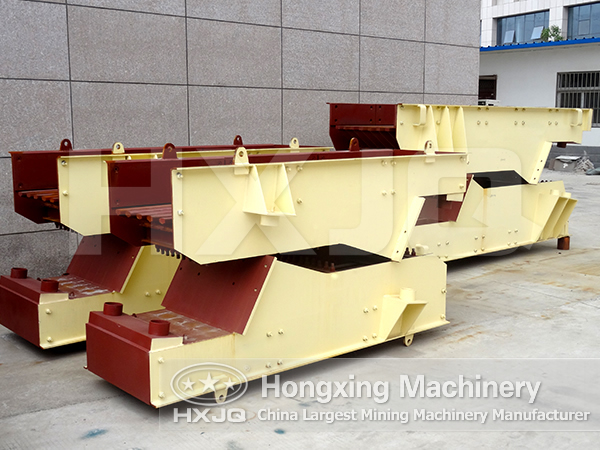

Vibrating Feeder

The ore vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign.

Details of Vibrating Feeder

Vibrating Feeder is also called Vibratory feeder and is designed and built to withstand the toughest work in a quarry or mine by matching different applications; this vibrating feeder series is designed particularly for continuous use with any hard and abrasive materials through uniform flow. Vibrating feeder works to continuously and evenly feed lump, particle and powdered materials from hopper to belt conveyer, bucket elevator, screens and crushing machines, etc. Steeples regulation is available for our vibrating feeder to automatically and centrally control the feeding volume.

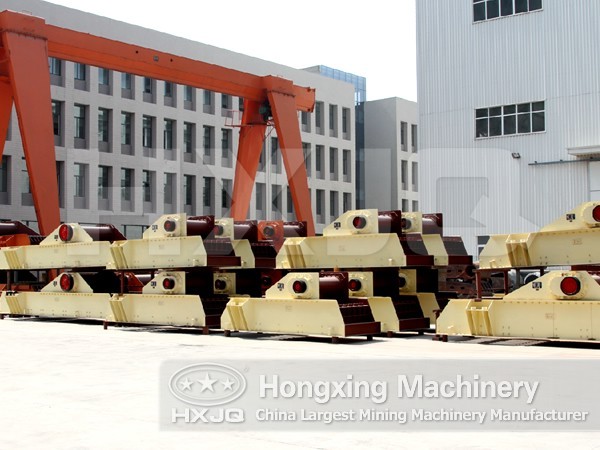

vibrating feeder

China vibrating feeder is manufactured on the theory of vibration, which is widely used in mining, construction materials, silicate and chemical industry. The feed grizzly can provide ores and rocks within 500mm for the next working procedure.

The machine vibrating grizzly feeder can send shaped and granule materials into receiving equipment evenly, timely and continuously. It can feed the crusher continuously and classify the material primarily in sand making and stone crushing line. It is widely used as crushing and screening in the industry of metallurgy, building material, chemical industry, coal mining and abrasive material.

Vibrating Feeder Benefits

1) Simple and dependable eccentric type system.

2) High screening capacity.

3) High durability.

4) No transmission of screen panels.

5) Ready changing of screen plates.

6) Rigid and vibrating resistance screen body.

Operation Principles & Structure Characteristics of Vibrating Feeder

The ore vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through vibration, the materials will slip and sling on the funnel, moving forward, and when the materials pass the screening part, smaller parts will fall down, thus avoiding the further crushing, and therefore, screening purpose can be reached.

Technical parameters

Model Max.
Feeding
Size
(mm)
Processing
Capacity
(t/h)
Motor
Power
(kw)
Obliquity
of material
trough
(°)
Trough
size
(mm)
Dimensions
(L×W×H)(mm)
GZD-650×2300 300 80-100 1.1×2 10-20 650×2300 2300×1360×780
GZD-750×2500 350 100-130 1.5×2 10-20 750×2500 2500×1460×780
GZD-850×3000 400 120-150 3×2 10-20 850×3000 3110×1800×1600
GZD-1000×3600 500 150-200 3.7×2 10-20 1000×3600 3850×1950×1630
GZD-1100×3600 580 240-300 3.7×2 10-20 1100×3600 3600×2050×1660
GZD-1300×3600 650 450-600 7.5×2 10-20 1300×3600 3900×2350×1750
GZD-1500×3600 1050 450-1000 10×2 10-20 1500×3600 3900×2000×1750
GZD-2000×3600 1200 550-1000 22×2 10-20 2000×3600 3600×2000×1750
GZD-2500×5000 1500 650-1500 11 10-20 2500×5000 5000×2500×1800
ZSW-380×95 500 100-180 11 0-10 3800×960 3800×1640×1320
ZSW-490×110 630 150-400 15 0-10 4900×1100 4980×1830×1320
ZSW-490×130 750 400-700 22 0-10 4900×1300 4980×2580×2083
ZSW-600×130 750 400-700 22 0-10 6000×1300 6082×2580×2083
ZSW-600×150 800 500-900 30 0-10 6000×1500 6086×2662×1912
ZSW-600×180 800 700-1500 37 0-10 6000×1800 6310×3262×2230
