Combination Crusher

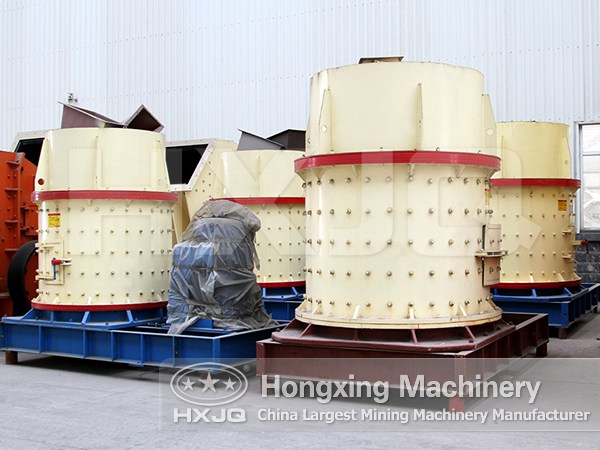

Combination Crusher

Combination crusher machine produced by our company has created a new era of high-speed railway construction; it is the representative of a new era of composite crusher and has been applied to selected iron equipment in high-speed rail and highway construction.

The combination crusher is a new generation high efficiency crushing machine designed and researched by integrating the domestic and foreign crusher technology with the same kinds and optimizing the main technical parameters. Its designing structure integrates the hammer crusher and impact crusher and its performance has reached the domestic and foreign advanced level and is applied in crushing all kinds of medium-hard rocks.

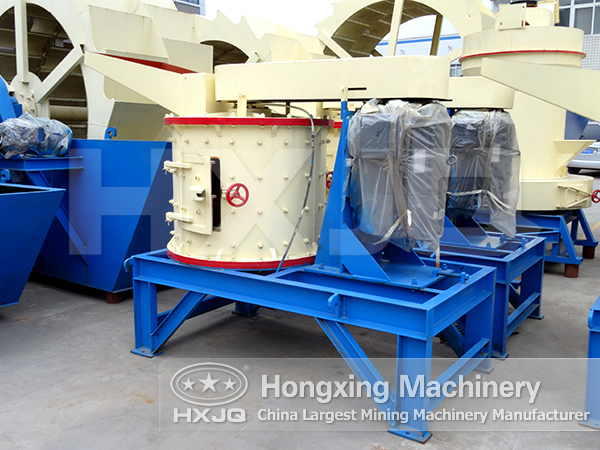

Combination Crusher

The compound crusher, which is also called compound cone crusher, is mainly composed by driving device, main shaft, drum, upper cap and the foundation. The electric motor drives the main shaft to rotate with the help of the ladder-shaped triangle belt, and the main shaft is equipped with hammer. The materials go inside the machine from the upper material feeding mouth and fall down under gravity, and then the materials will be crushed under a series of impact of the hammer at high rotary rate, and finally be discharged from the lower material discharging mouth.

Performance Characteristics:

The compound crusher has high crushing ratio, and it is ideal for crushing and processing materials with high water content. The granularity of the discharged materials can be adjusted according to the customers’ requirements. There is no screening bar in this machine so that the materials with high mud and sand content will not block the machine, and even if some uncrushable materials go into the machine, they can be automatically discharged and will not cause damage to the machine. This machine has many advantages such as high production efficiency, unique structure, stable operation, low level of noise and convenient repair, and the easy-wearing parts can be easily changed only by opening the working door.

Application Ranges:

The compound cone crusher can be used for fine crushing limestone, clinker, coal and other kinds of ores and rocks in building material, mining, metallurgy and chemistry, and at the same time it can also be applied in fine crushing medium hard materials such as dolomite, flint clay, lead-zinc deposit, high slag, coal gangue, rock phosphate, especially suitable for hard limestone, dolomite, granite and basalt of artificial sand making and highway surface stone material processing and crushing.

Working Principle of Combination Crusher:

The materials vertically fall into the impeller with high rotary speed from the upper part of the machine, and under the effect of high speed eccentric force, the materials will hit and crush the other part of materials which shunt around the impeller with the shape of umbrella. After the materials are hit each other inside the combination crusher, they will hit, rub with each other between the impeller and machine shell and then crushed, and finally they will be discharged from the lower part, forming a closed-circuit cycle. The granularity of the final products is controlled by the screening equipment.

Henan Hongxing Mining Machinery Co., Ltd. is a professional crusher manufacturing company, and our company mainly produces compound crusher and compound cone crusher; we have many years of production, research and development experience, and welcome the customers to purchase products. Service life: +86-0371-67833161.

Technical parameters of Combination crusher

Model
800
1000
1250
1500
1750
Rotor diameter(mm)
650
800
1000
1250
1560
Cylinder height(mm)
800
850
850
1000
1410
Main shaft Rotation speed(Rotation/min)
1350
970
740
650
600
Feeding size(mm)
50
70
100
100
100
Discharging size(mm)
0-5
0-5
0-5
0-5
0-5
Processing capacity(t/h)
5-15
10-30
20-60
30-80
40-100
Motor Power(kw)
30
55
75
110
132
Rotation speed
1440
1440
750
750
750
Dimensions(L*W*H)(mm)
2200*860*1980
2700*1160*2000
2800*1400*2730
3100*1900*2300
3350*2100*2800
Weight(t)
2.3
4.5
9.73
18.1
26.61
