High-strength Raymond Mill

High-strength Raymond Mill

When a certain degree of wear of roller and ring is effected, it is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring. As a result, the stable output and fineness are ensured.

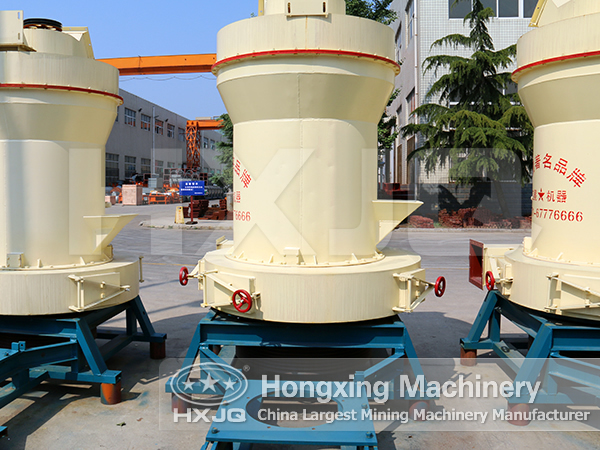

High-strength Raymond mill

The machine is used for grinding the barite, limestone, kaolin, cerames, and slags, etc, below scale 9.3 of Mohs hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing. The product size is adjustable in the range of 80-425 (1000 the finest) meshes. It is possible to product 30-80 mesh coarse powder through special device in the machine.

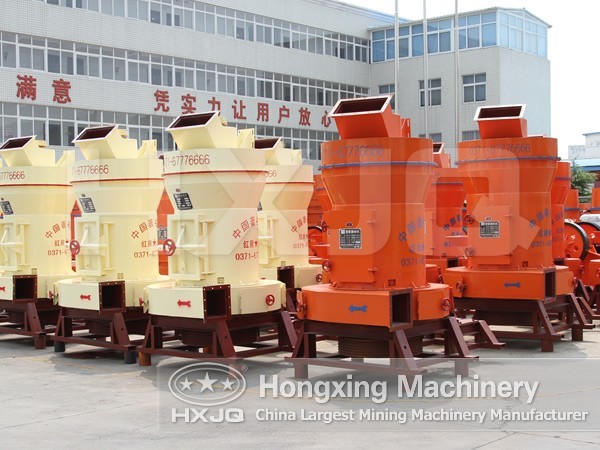

Raymond Mill

Working process:

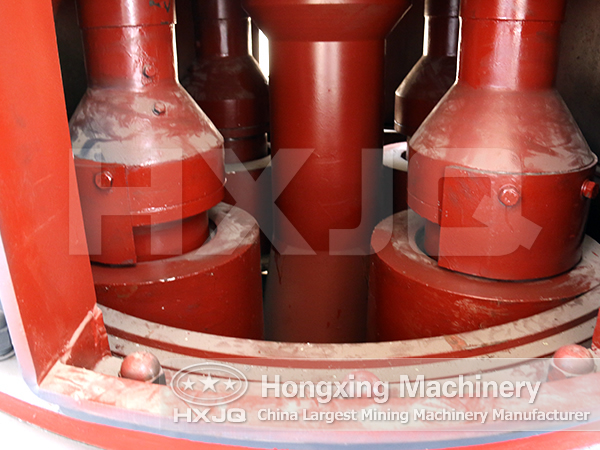

In the main frame, a 100-1500 kg powered pressure spring is fixed to the roller suspender. After the grinder is put into effect, the roller rotates around the main shaft, and rolls closely against the ring pressed by the high pressure spring and centrifugal force. And its rolling pressure ration is 1.2 times higher than that of the raymond grinder under the same power condition and the production output is raised to substantial degree.

Raymond mill

When a certain degree of wear of roller and ring is effected, it is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring. As a result, the stable output and fineness are ensured.

Technical parameters

Model High-strength97 High-strength93 High-strength92 High-strength87 High-strength76 High-strength66 High-strength62
Feeding Size(mm) ≤25 ≤25 ≤25 ≤25 ≤20 ≤15 ≤15
Output Size(mm) 0.125-0.033 0.125-0.033 0.125-0.033 0.125-0.033 0.125-0.033 0.125-0.044 0.125-0.044
Shift Output of Different Material Fineness(t) 4-52 3.5-40 3-36 2.8-33 1.5-25 1-20 0.6-9
Rotation Speed of Central Shaft(r/min) 130 140 148 161 170 190 274
Ring Diameter(mm) 1050 1006 973 907.5 850 725 525
Roller Diameter(mm) 310 300 300 270 260 210 150
Roller Height(mm) 170 160 160 150 150 150 100
Main Motor Y225S-4-37 Y225M-8-30 Y225M-8-30 Y225M-8-22 Y225S-8-18.5 Y200L-8-15 Y160M-6-7.5
Fan Motor Y200L-4-37 Y180M-2-22 Y180L-4-22 Y180M-4-18.5 Y160L-4-15 Y160M-4-11 Y132S-4-5.5
Analyzer Motor YCT200-4A-5.5 Y112M-6-3 Y112M-6-2.2 Y112M-6-2.2 Y112M-6-2.2 Y112M-6-2.2 Y90L-6-1.1
