Flotation Machine

Flotation Machine

Flotation machine, which is also called floation separator, is applied for separating nonferrous metal and ferrous metal and nonmetal such as fluorite and talc. Compared with flotation cells, its uniqueness lies in big size, lower power loss and light wear and tear of the impeller.

Introduction to Flotation Machine

Flotation machine, which is also called floation separator, is applied for separating nonferrous metal and ferrous metal and nonmetal such as fluorite and talc. Compared with flotation cells, its uniqueness lies in big size, lower power loss and light wear and tear of the impeller. Flotation machine is commonly used ore flotation equipment in the ore dressing plants and plays a crucial role in the fast development of mining industry in China.

Flotation Machine

Major Types of Flotation Machine

The major types of mechanical flotation machine include inflatable flotation machine, flotation separator or hybrid inflatable flotation machine, gas precipitation flotation machine. Sometimes the flotation cell is also called cell flotation in some other countries due to their long using and calling habit and the word flotation-cell is also often used in Chinese mining market.

Working Principle of Flotation Machine:

When flotation cell works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low pressure air sent by fan is transported to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impellers, and then goes to the trough. When the froth rises to the stable level, after the enrichment processing, it overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impellers for the remixing with air. The remaining slurry flows to the next trough until it becomes residue.

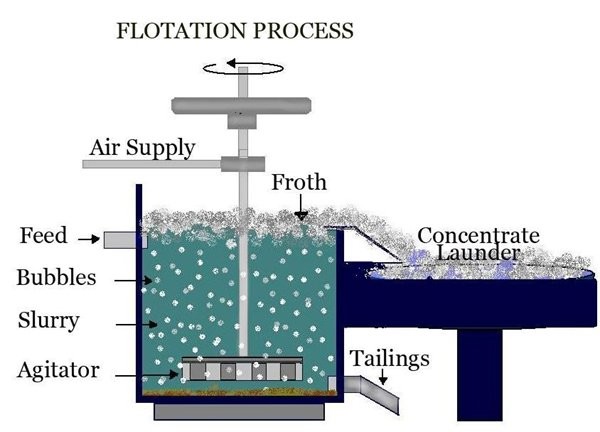

Flotation Process

Technical parameters

Technical Parameters of SF Series Flotation Machine
Model
SF0.37
SF0.7
SF1.2
SF2.8
SF4
SF8
Trough capacity(m³)
0.37
0.7
1.2
2.8
4
8
Impeller diameter(mm)
300
350
450
550
650
T60
Production capacity (m³/min)
0.2-0.4
0.3-0.9
0.6-1.2
1.5-3.5
0.5-4
4-8
Impeller rotation speed (r/min)
352
400
312
268
238
191
Motor
Model
①Y90L-4
①Y100L2-4
①Y132M2-6
①Y160L-6
①Y180L-6
①Y250M-8
②Y90S-4
②Y90S-4
②Y90S-4
②Y90S-4
②Y90L-4
②Y100L-6
Power(kw)
①1.5
①3
①5.5
①11
①15
①30
②1.1
②1.1
②1.1
②1.1
②1.5
②1.5
Dimensions(mm)
700×700×750
900×820×950
1100×1100×1100
1700×1600×1150
1850×2050×1200
2200×2900×1400
Single trough weight(kg)
468
600
1373
2338
2660
4486
Technical parameters of BF flotation machine
Model Trough cubage
(m³)
Inside dimensions
(L×W×H)
(m)
Air suction amount
(m³/㎡·min)
Power
(kw)
Motor model Processing capacity
(m³/min)
Single trough weight
(kg)
BF-0.37 0.37 0.74×0.74×0.75 0.9~1.05 1.5 Y90L-4 0.2~0.4 470
BF-0.65 0.65 0.85×0.95×0.9 0.9~1.10 3.0 Y132S-6 0.3~0.7 932
BF-1.2 1.2 1.05×1.15×1.10 1.0~1.10 5.5
4.0
Y132M2-6
Y132M1-6
0.6~1.2 1370
BF-2.0 2.0 1.40×1.45×1.12 1.0~1.10 7.5 Y160M-6 1.0~2.0 1750
BF-2.8 2.8 1.65×1.65×1.15 0.9~1.10 11 Y180L-8 1.4~3.0 2130
BF-4.0 4.0 1.9×2.0×1.2 0.9~1.10 15 Y200L-8 2~4 2585
BF-6.0 6.0 2.2×2.35×1.3 0.9~1.10 18.5 Y225S-8 3~6 3300
BF-8.0 8.0 2.25×2.85×1.4 0.9~1.10 22
30
Y225M-8
Y250M-8
4~8 4130
BF-10 10 2.25×2.85×1.7 0.9~1.10 22
30
Y225M-8
Y250M-8
5~10 4660
BF-16 16 2.85×3.8×1.7 0.9~1.10 37
45
Y280S-8
Y280M-8
8~16 8320
BF-20 20 2.85×3.8×2.0 0.9~1.10 37
45
Y280S-8
Y280M-8
10~20 8670
BF-24 24 3.15×4.15×2.0 0.9~1.10 45 Y280M-8 12~24 8970
