Spiral Classifier

This screw classifiers can filter materials and send course materials to the feeding mouth and discharge fine materials from the pipe. The major types of classifiers include spiral separator and screw classifier.

Features
Inquiry

Brief Introduction to Classifier

The classifer is widely used in the ore beneficiation plants and equipped with ball mill to form a closed circuit cycly system to shunt the ore sand or in the gravity ore beneficiaiton plant to separate the ore sand and fine mud or in the metal dressing flow to separate the pulp. The classifiers manufactured by our company has the features of simple structure, realiable work and convenient operation.

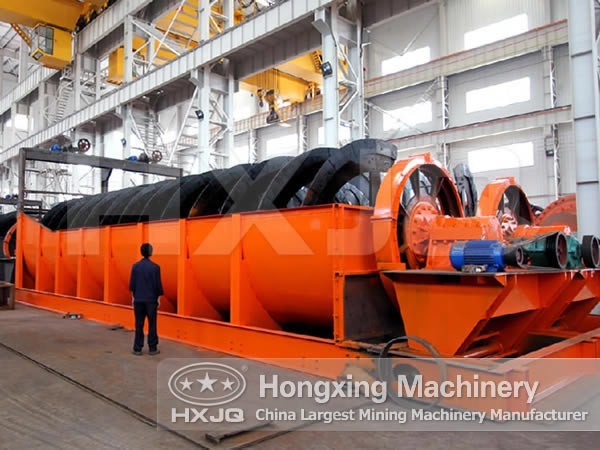

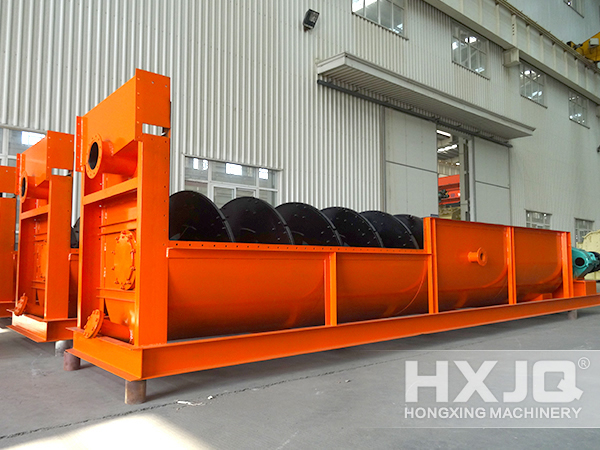

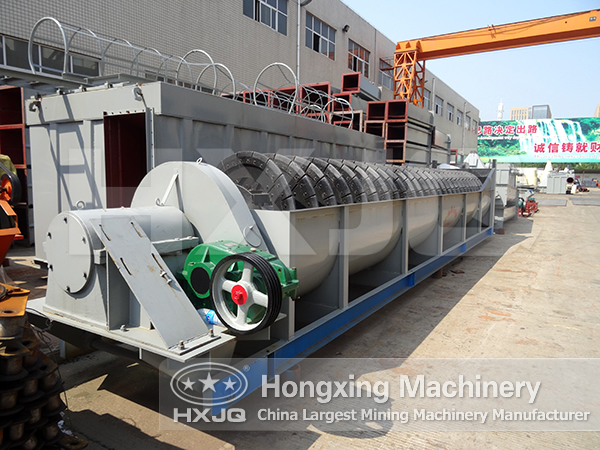

Spiral Classifier

Because different grains have different specific gravity and sedimentation rates in liquid, this product allows the fine ore to flow in the water, while coarse ore sinks to the bottom. This screw classifiers can filter materials and send course materials to the feeding mouth and discharge fine materials from the pipe. The major types of classifiers include spiral separator and screw classifier.

Main features of Spiral Classifier

1. Adjustable weirs

2. Sealed, submerged bearing

3. Optional automatic lubrication system

4. Rigid tank and substructure

5. Wide choice of tank design

6. Overflow collection box

7. Wide range of industries serviced

The Structure and Use of Screw Classifier

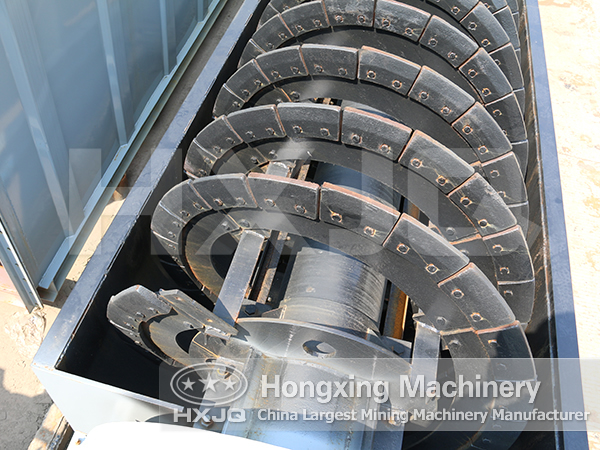

The key components of a screw classifier include main shaft, which is carefully designed and selected to prevent deflection due to the spiral weight and the thrust load imposed by the spiral during raking. Large diameter, seamless steel, tubular shaft with sufficient wall thickness is used for minimum deflection. Heavy duty cast steel arms are clamped to the main shaft. The spiral consists of sectional circular steel flights. The china spiral classifier is called ore spiral classifier.

The proper combination of pool depth, area and spiral construction is important to secure a controlled turbulence in the slurry flow for accurate size separation. The most important thing is that our spiral classifier price is rather reasonable compared with other similar products.

Technical parameters

Model	Spiral Diameter (mm)	Trough Length (mm)	Spiral rotate speed (r/min)	Processing capacity（t/d）		Motor Power （kw ≤）		Dimensions （mm≤）			Total weight （t）
Model	Spiral Diameter (mm)	Trough Length (mm)	Spiral rotate speed (r/min)	Sand -return	Overflow	For driving	For lifting	Length	Width	Height	≤
FG-3	300	3000	12-30	80-150	20	1.1	----	3850	490	1140	0.7
FG-5	500	4500	8-12.5	135-210	32	1.1	----	5430	680	1480	1.9
FG-7	750	5500	6-10	340-570	65	3	----	6720	980	1820	3.1
FG-10	1000	6500	5-8	675-1080	110	5.5	----	7590	1240	2380	4.9
FC-10	1000	8400	5-8	675-1080	85	7.5	----	9600	1240	2680	6.2
FG-12	1200	6500	4-6	1170-1870	155	7.5	2.2	8180	1570	3110	8.5
FC-12		8400		1170-1870	120	7.5	2.2	10370	1540	3920	11.0
2FG-12		6500		2340-3740	310	15	4.4	8230	2790	3110	15.8
2FC-12		8400		2340-3740	240	15	4.4	10370	2790	3920	17.6
FG-15	1500	8300	4-6	1830-2740	235	7.5	2.2	10410	1880	4080	12.5
FC-15		10500		1830-2740	185	7.5	2.2	12670	1820	4890	16.8
2FG-15		8300		2280-5480	470	15	4.4	10410	3390	4080	22.1
2FC-15		10500		2280-5480	370	15	4.4	12670	3370	4890	30.7
FG-20	2000	8400	3.6-5.5	3290-5940	400	11-15	3	10790	2530	4490	20.5
FC-20		12900		3210-5940	320	11-15	3	15610	2530	5340	28.5
2FG-20		8400		7780-11880	800	22-30	6	11000	4600	4490	35.5
2FC-20		12900		7780-11880	640	22-30	6	15760	4600	5640	48.7
FG-24	2400	9130	3.67	6800	580	15	3	11650	2910	4970	26.8
FC-24		14130		6800	490	18.5	4	16580	2930	7190	41.0
2FG-24		9130		13600	1160	30	6	12710	5430	5690	45.8
2FC-24		14130		13700	910	37	8	17710	5430	8000	67.9
2FG-30	3000	12500	3.2	23300	1785	40	8	16020	6640	6350	73.0
2FC-30	3000	14300	3.2	23300	1410	----	----	17091	----	8680	84.8
