Cement Mill

Cement Mill

Our cement mills at domestic advanced level are exported to Vietnam, Indonesia, France, Germany, etc. China cement mills have been honored as famous brand of China Building material in machinery industry, national top brand product, fixed-point production of national building materials, etc.

What is a cement mill?

A cement mill is an installation used to grind the clinker component of concrete. Clinker is a hard, nodular material produced by sintering aluminosilicate and limestone in a cement kiln. There are several cement mill types which are able to grind clinker of which the ball mill is the most common. Ball mills consist of cylinders partially filled with large numbers of steel balls which employ their rolling action to crush the raw material when each cylinder is rotated. High pressure roller mills are occasionally used to grind clinker although their use has not yet gained broad acceptance.

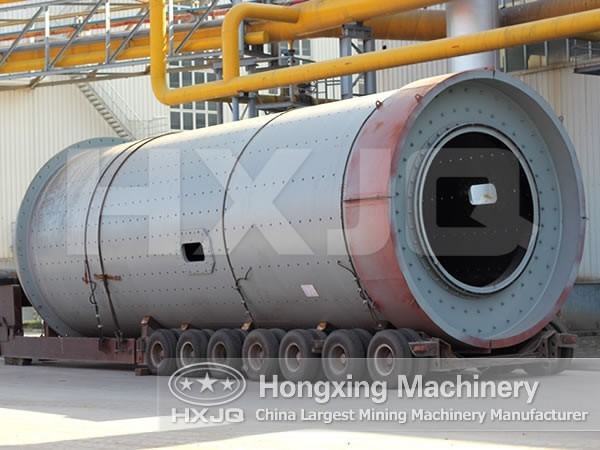

cement mill

The chief constituent of Portland cement is a sintering product of limestone and aluminosilicate known as clinker. This hard, pebble like material is the ingredient in cement which causes it to “cure” and harden to form the mortar or concrete used so extensively in construction. The clinker sintering or heat combination process produces a coarse, nodular material of particular hardness which requires fine grinding prior to cement production. Particle sizes of below 45 µm are required which, due to clinker's hardness, requires a particularly efficient milling process. Although there are several mill types capable of grinding clinker, the most commonly used cement mill process is the ball mill.

Why our cement miller is unique

We are engaged in offering industrial equipment as well as undertaking various turnkey projects in the industry. We have expertise in handling the demands of small to medium scale industries, rotary kiln cement plants and steel rolling mills. Apart from this, we undertake various activities related to:

* Designing

* Equipment manufacturing and sub-contracting

* Erection, commissioning and post commissioning services

Design Engineering For designing and engineering our products, we use latest designing techniques & software like ProE & AutoCad assist us in:

* Designing of equipment

* General arrangements and layouts

* Civil drawings

* Process flow sheets

The advantages of China cement mill

Our cement mills at domestic advanced level are exported to Vietnam, Indonesia, France, Germany, etc. China cement mills have been honored as famous brand of China Building material in machinery industry, national top brand product, fixed-point production of national building materials, etc. The Cement mill price is also lower than the foreign countries.

The application of raw material mill

Cement products and raw materials mainly are used in Raw material mill, also used in metallurgy, chemical industry, electric power and other industrial and mining enterprises grinding various ores and other grind-able materials available. Can be used to open stream grinding, also applies to the composition of the powder flow grinding circle.

Cement mill with adaptability of materials and can produce a continuous, broken than large, easy-to-speed grinding fineness of the product characteristics.

Technical parameters

Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
φ1.83×7 Open flow Brim ZD60 4.5 245 6.5-8 43.8
φ2.2×7.5 Circle flow Brim ZD70 5 380 8-10 64.8
φ2.2×11 Open flow Central shaft D110 35.5 630 12-13 104.6
φ2.2×13 Open flow Central shaft D110 35.5 630 16-18 114
φ2.4×13 Open flow Central shaft D110 35.5 800 20-23 130.6
φ2.6×13 Open flow Central shaft MFY100 19.5 1000 28-32 158
φ3×9 Circle flow Brim D125 41.2 1000 28-36.5 167
φ3×11 Circle flow Central shaft D140 42.8 1250 36-47 180
φ3.2×13 Open flow Central shaft D140 36.5 1600 45-50 225
φ3.5×13 Circle flow Brim JDX1000 5.84 2000 60-65 275
φ3.8×13 Open flow Central shaft MFY250 16.5 2500 60-62 320
φ4.2×13 Open flow Central shaft JQS3550 15.6 3530 85-87 380
φ4.6×14 Circle flow Central shaft JSI160-C 14.6 4200 120-135 485
