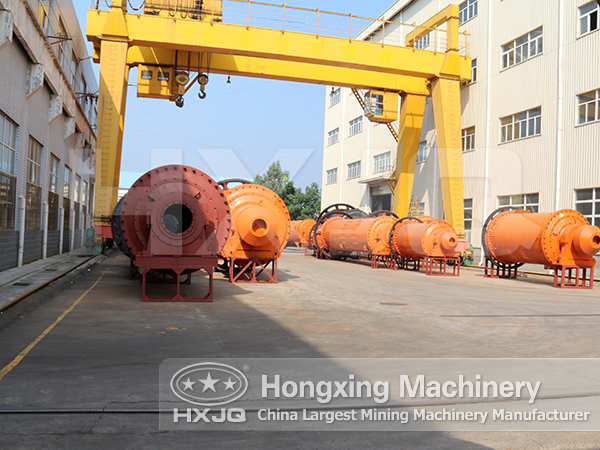

Energy Saving Ball Mill

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet.

Features
Inquiry

Application:

Ball mill is the key milling equipment after materials has been crushed. It is widely used in cement, silicate, new construction material, refractory material, ferrous metal and non-ferrous metal as well as ceramics. It is widely applied to grind ores in dry or wet process.

Working principle:

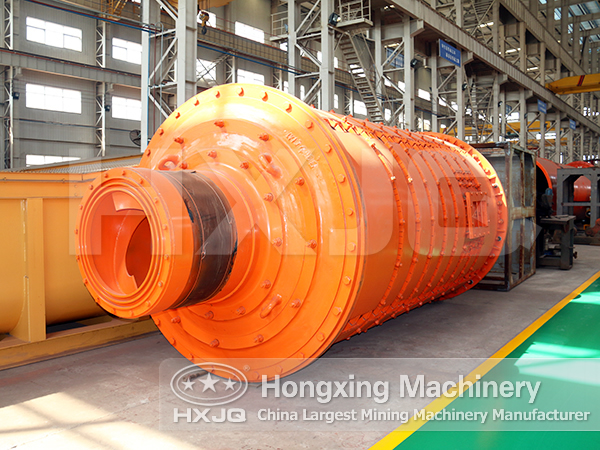

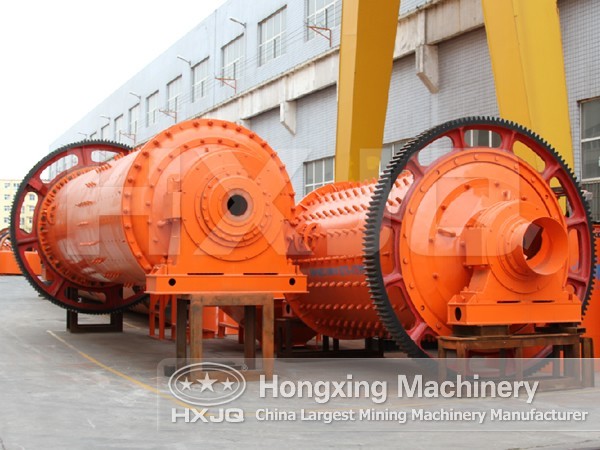

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls.

The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging. Then the whole grinding process is finished.

Technical parameters

Model	Shell rotation speed （r/min）	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
Ф900×1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	≤25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	≤25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	≤25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	≤25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	≤25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	≤25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	≤25	0.074-0.4	As per process conditions	630	149
Ф3600×4500	17	90	≤25	0.074-0.4	As per process conditions	850	169
Ф3600×6000	17	110	≤25	0.074-0.4	As per process conditions	1250	198
Ф3600×8500	18	131	≤25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	≤25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	≤25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	≤25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	≤25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	≤25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	≤25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	≤25	0.074-0.4	148-615	4500	525
